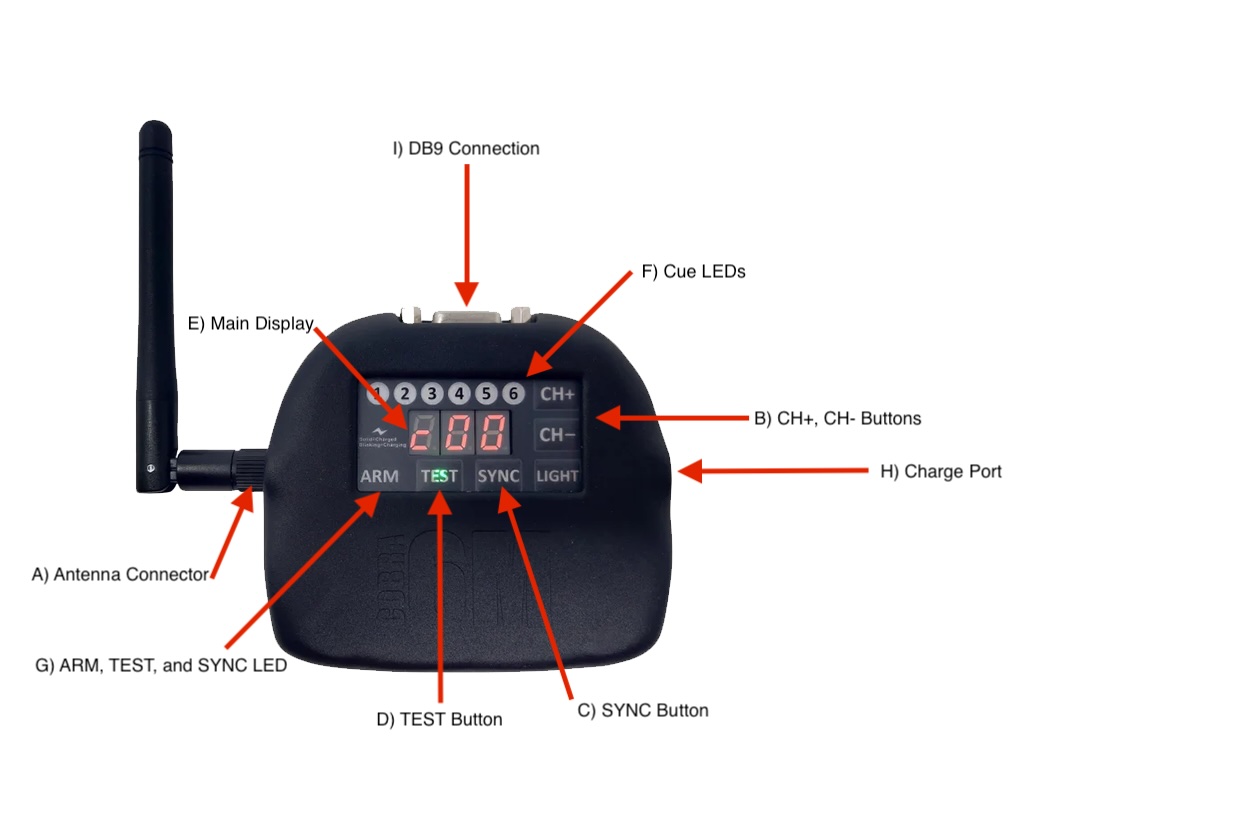

| A) Antenna Connector Connect the 6M omnidirectional antenna, COBRA Booster, COBRA DISH, or a combination of the three. |
B) CH+, CH- Buttons Press and release to increment (CH+) or decrement (CH-) the channel for the selected bank. |
| C) SYNC Button Used to synchronize the module to your 18R2. Also used to place the module into Program Mode when performing firmware updates. |
D) TEST Button Used to test continuity locally on the module. |
| E) Main Display Used to display the module's battery life, address, channel, and signal strength. See Power On & Startup Sequence. |
F) Cue LEDs Used to display the module's continuity. |
| G) ARM, TEST, and SYNC LED The ARM, TEST, and SYNC LED indicators. |
H) Charge Port Only use a COBRA charger when charging a module. The charge LED indicator blinks when charging and is solid red when fully charged. Charge time is 6 hours from P0 to P9; do not use the module in a live show when the charger is plugged in. |
| I) DB9 Connection The DB9 connection allows the 6M to accept a verity of COBRA cue strip accessories. The COBRA 6M has an optional QuickPlug terminal block, standard speaker wire terminal block, and a RJ45 DB9 connection. |
